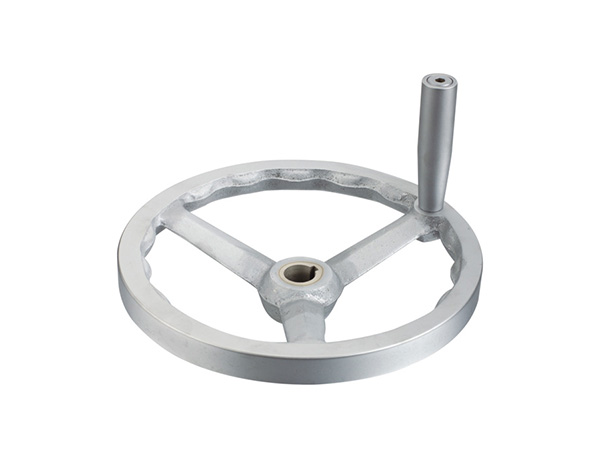

Product Name: Spoked Handwheels With Revolving Handle Model Number: HY8313.4 Brand Name: Huayang Executive Standard: JB/T 7273.4-94 (GB4141.23-84) Material: Cast iron, Steel Surfaced Process: and-blasted/chrome bright Place of Origin: Zhejiang, China (Mainland)
Product specification

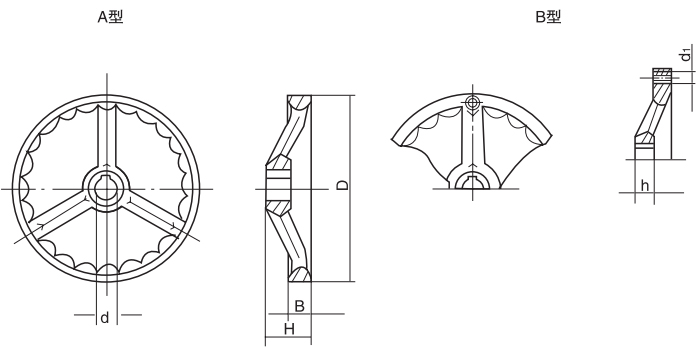

Drawing
Structure diagram
| Item No. | Main dimensions（mm） | Mounting hole | |||||
| Type A | Type B | D | H | B | d | h | d? |
| HY8313.4\A18x200 | HY8313.4\B18x200 | 200 | 45 | 20 | 18 | 25 | M10 |
| HY8313.4\A22(25)x250 | HY8313.4\B22(25)x250 | 250 | 50 | 22 | 22、25 | 28 | M12 |
| HY8313.4\A25(28)x320 | HY8313.4\B25(28)x320 | 320 | 55 | 24 | 25、28 | 32 | M12 |
| HY8313.4\A28(30)x400 | HY8313.4\B28(30)x400 | 400 | 65 | 26 | 28、30 | 40 | M16 |
